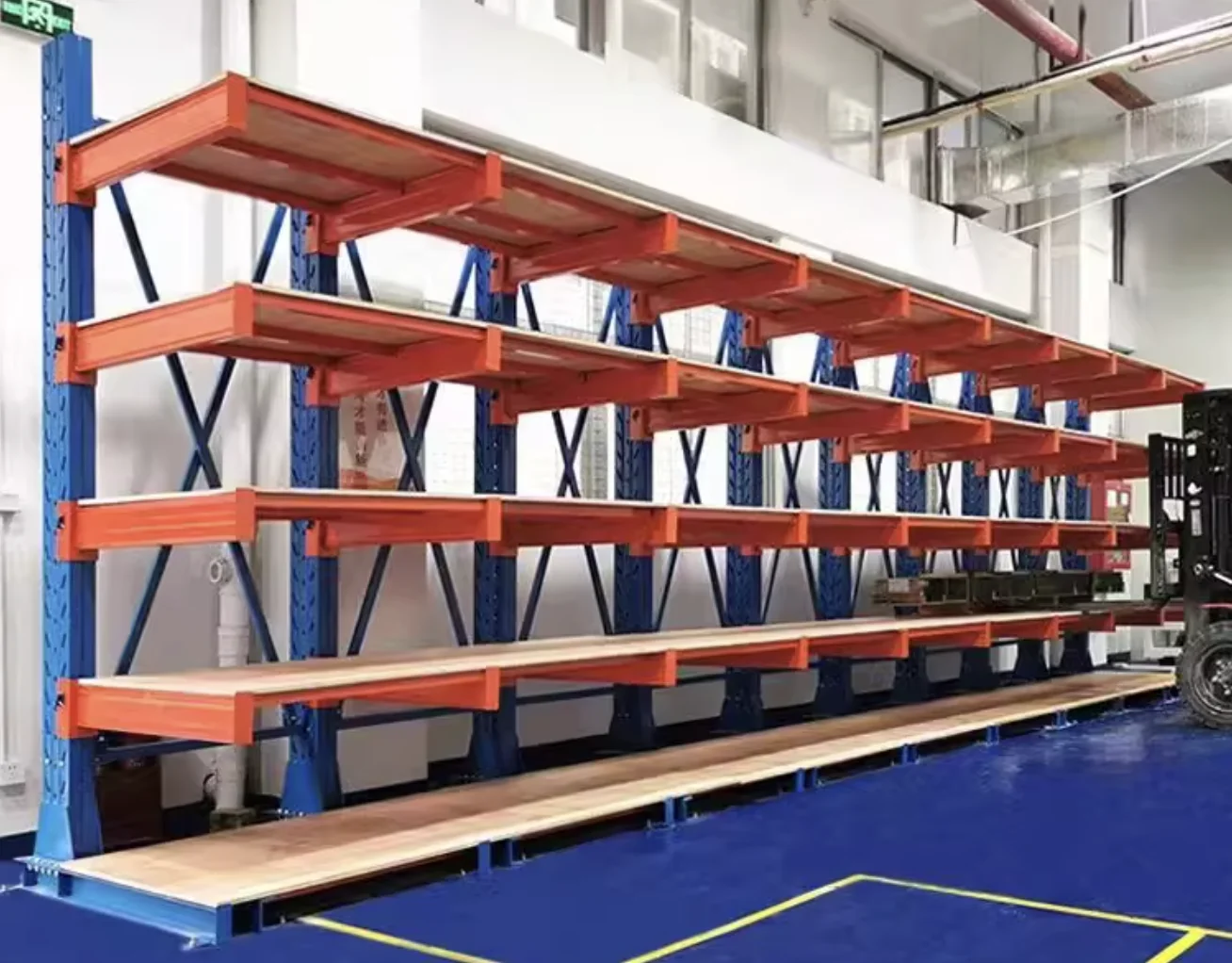

Cantilever Racking

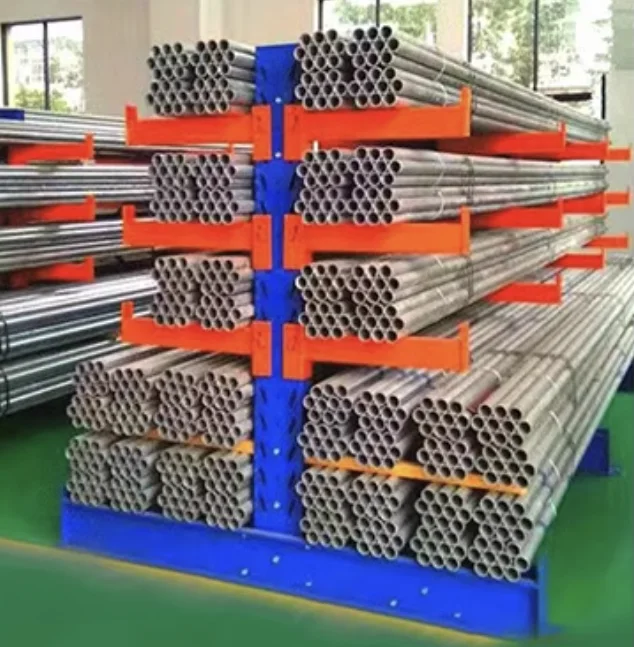

Cantilever racking is a type of storage equipment used for storing long materials, circular goods, and irregular items, such as profiles, pipes, cables, timber, and long strips.
Specifications

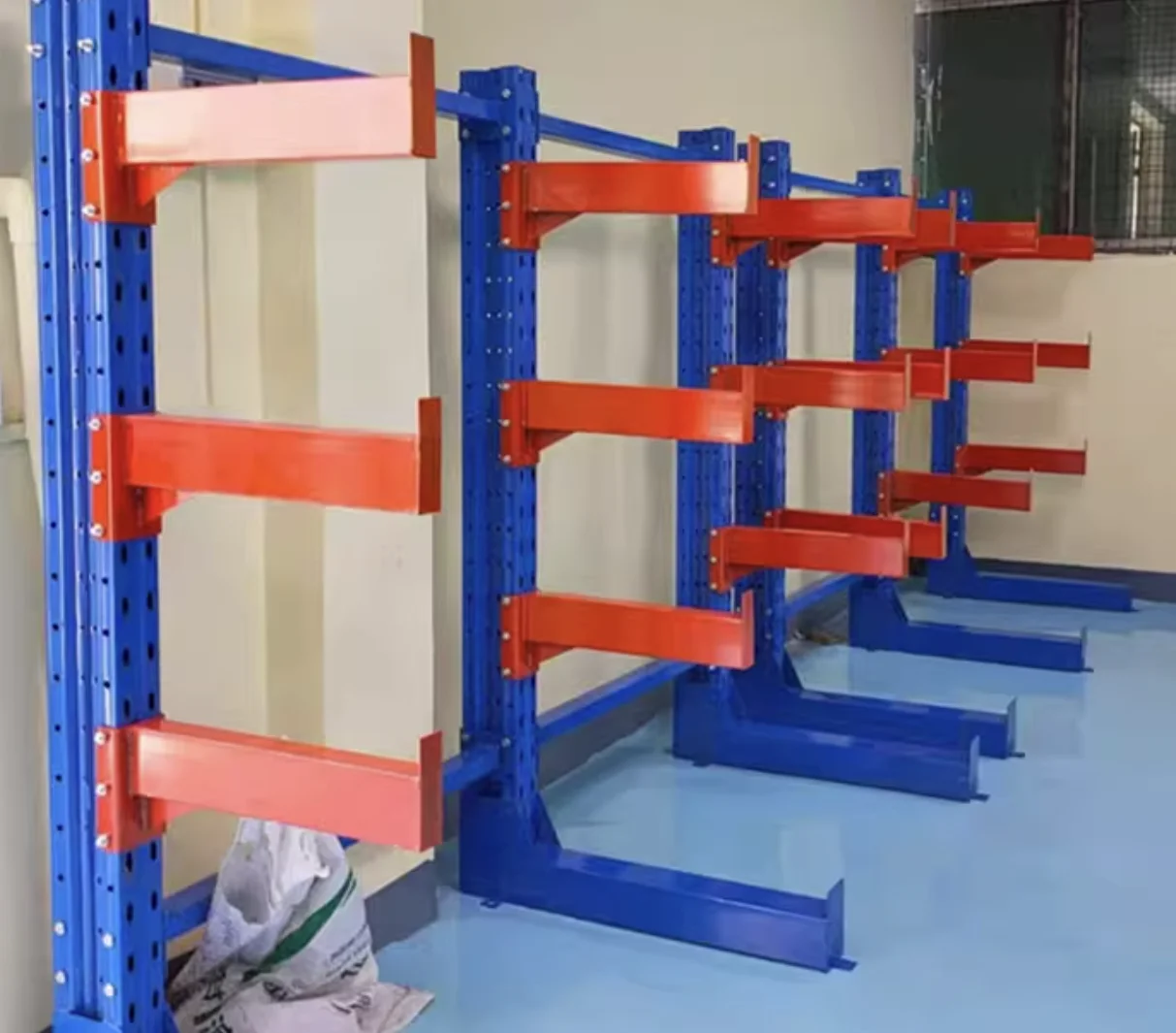

The racking is available in single-sided and double-sided configurations, featuring either single or double arms. It is categorized into three types based on load capacity: light-duty, medium-duty, and heavy-duty. Cantilever arm lengths are typically within 1.5 meters, with a load capacity generally under 1,000 kg per arm. The standard height is within 2.5 meters, though it can reach up to 6 meters for forklift operations. The structure consists of H-beam or cold-rolled steel columns; the cantilever columns are mostly made of cold-rolled hollow section steel with prefabricated holes, connected to the base via welding or bolt groups. The base is equipped with footplates for floor anchoring and can be manufactured from H-beams or specialized profiles. The cantilever beams are made of square tubing, H-beams, or cold-rolled steel, and are connected to the columns using hitch pins or bolts, allowing for adjustable height spacing.
